Description

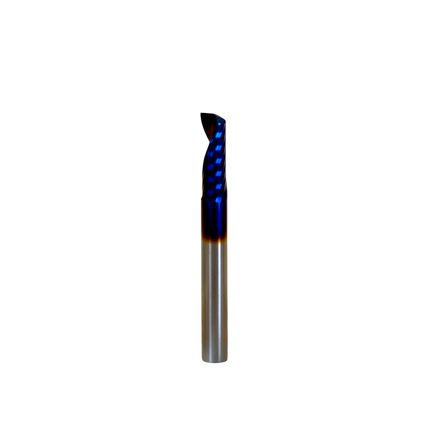

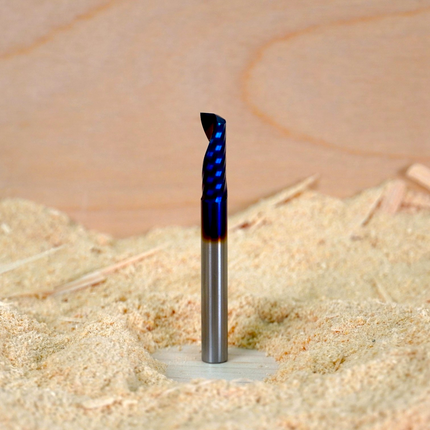

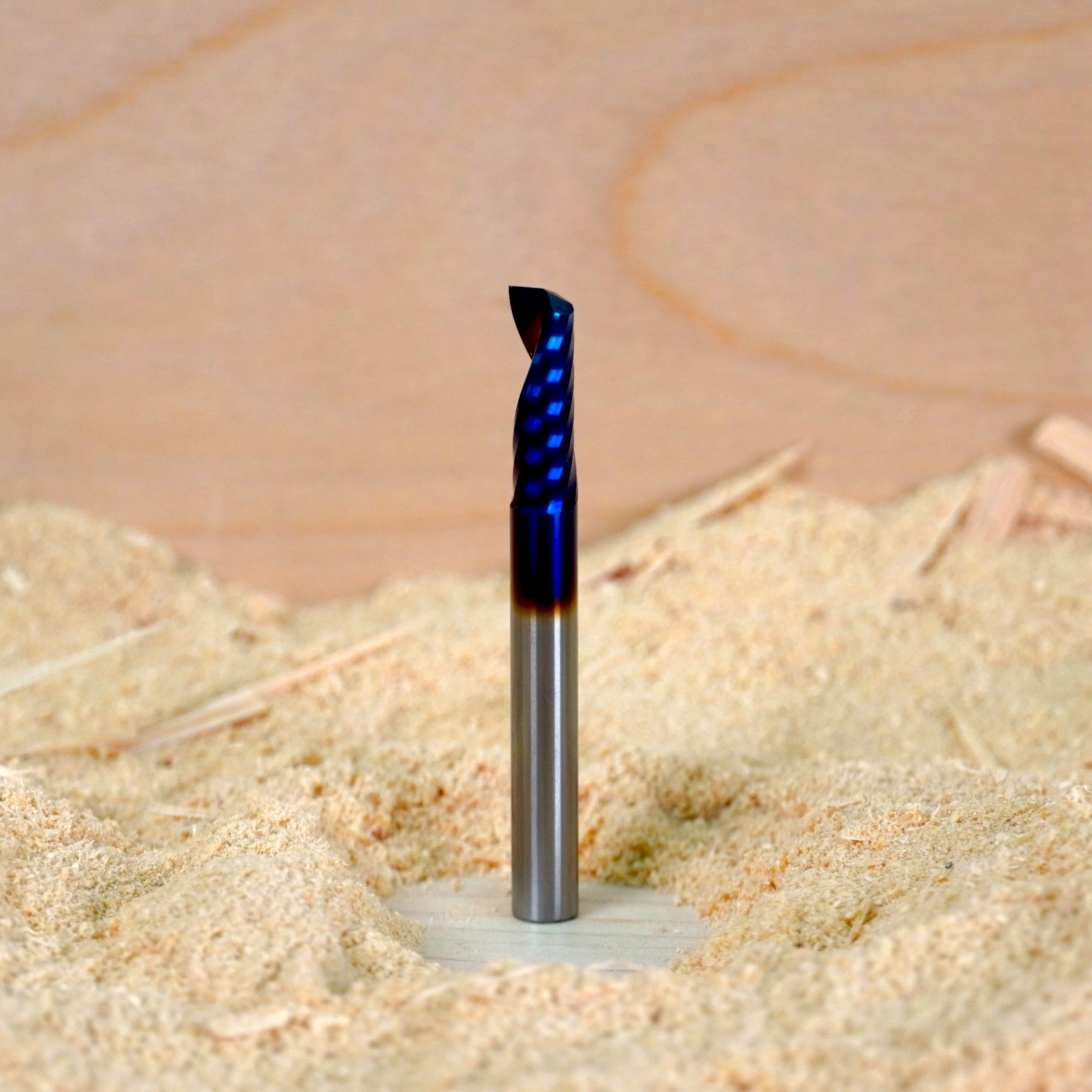

CNC Router O-Flute End Mill OF-2525 1/4"-Tungsten Carbide
Nano Blue Coated
Overview
CNC Router O-Flute End Mill OF-2525 1/4"-Tungsten Carbide is built for clean, efficient cutting in plastics and softer non-ferrous materials. The single-flute O-flute geometry clears chips well, helps reduce heat buildup, and supports higher feed rates for cleaner edges and less melting.
Best For
- Acrylic and other plastics
- HDPE, UHMW, and Delrin
- PVC
- Soft aluminum with light cuts
Why Choose It
- Single flute for strong chip evacuation
- Helps reduce heat in plastics
- Supports higher feed rates
- Produces clean edges with minimal melting
Starting Parameters
Best results come from moderate RPM and higher feed rates. Adjust for material, rigidity, and chip formation.
-
Spindle: 16,000–22,000 RPM
-
Feed: 180–350 IPM
-
Plunge: 40–80 IPM
-
Cut Strategy: Keep feed high enough to form chips, not melt material
Specifications
-
Tool Type: O-Flute End Mill
-
Flutes: 1
-
Cutting Diameter: 1/4"
-
Cutting Length: 0.79"
-
Shank Diameter: 1/4"
-
Overall Length: 2.36"
-
Material: Tungsten Carbide
-
Coating: Nano Blue
Notes
- Not ideal for hardwood or plywood
- Avoid slow feeds in plastics
- Air assist or chip evacuation improves finish
