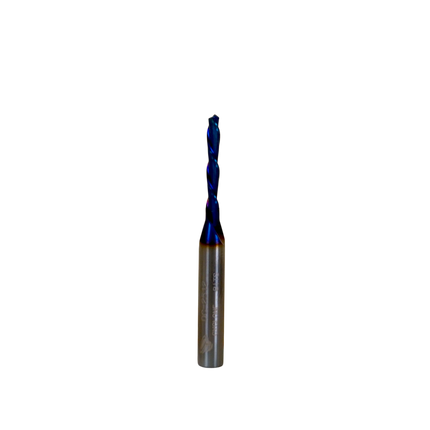

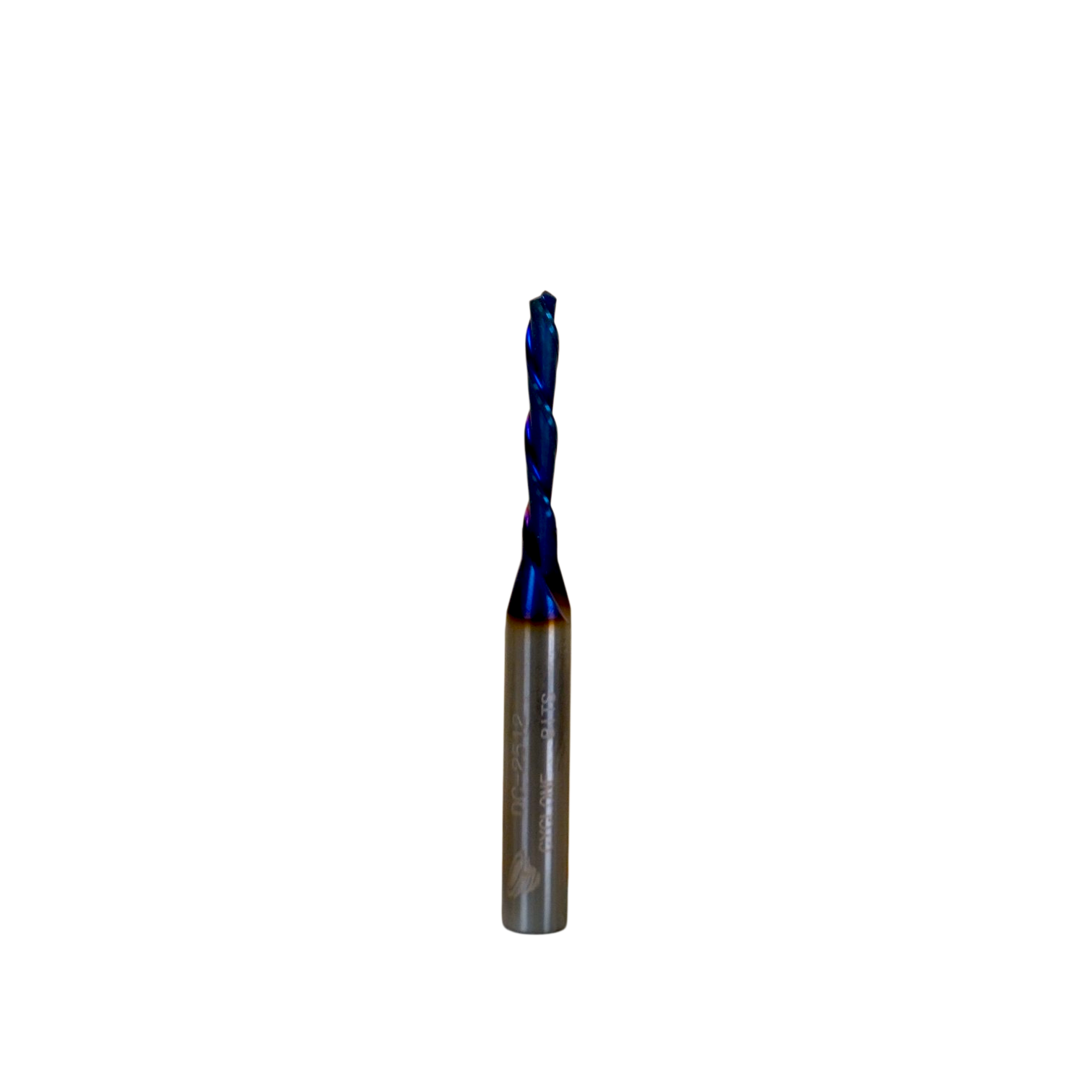

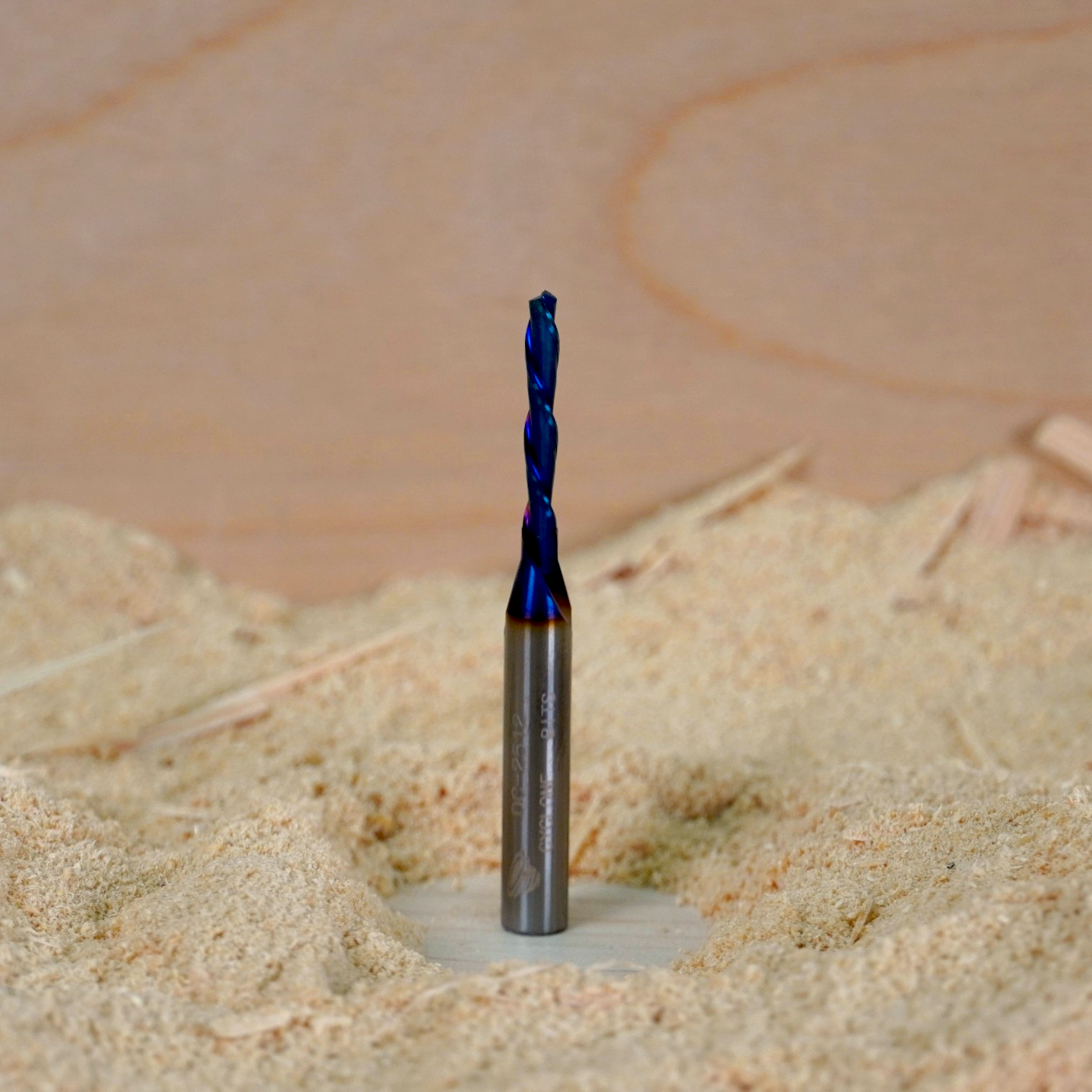

CNC Router Down-Cut End Mill DC-2512 1/8"-Tungsten Carbide

Nano Blue Coated

Overview
CNC Router Down-Cut End Mill DC-2512 1/8"-Tungsten Carbide is built for clean top-edge finishes and fine detail work. The down-cut geometry pushes chips downward to help prevent top-surface tear-out, making it a great choice for visible parts, inlays, and precision profiling. Nano Blue coating improves heat resistance and tool life on spindle-driven CNC machines.

Best For

• Fine detail work
• Small pockets and profiles
• Inlays
• Clean top-edge finishes

Why Choose It

• Excellent top-surface finish with minimal tear-out
• Ideal for detailed cutting and visible parts
• Nano Blue coating improves durability
• Rigid 1/4" shank adds stability

Starting Parameters
Small-diameter tools need higher RPM and lighter cuts for best results.

• Spindle: 18,000–24,000 RPM
• Feed: 80–150 IPM
• Plunge: 25–50 IPM
• Cut Strategy: Use conservative depths and clear chips often

Compatible Materials

• Plywood and veneered sheet goods
• Hardwood
• Softwood
• MDF
• Plastics

Specifications

• Tool Type: Down-Cut End Mill
• Flutes: 2
• Cutting Diameter: 1/8"
• Cutting Length: 0.87"
• Shank Diameter: 1/4"
• Overall Length: 2.36"
• Material: Tungsten Carbide
• Coating: Nano Blue

Notes

• Chips can pack in deep slots, so use lighter passes
• Not ideal for aggressive deep pocketing without clearing moves
• Excellent for finishing passes and detailed work
