Description

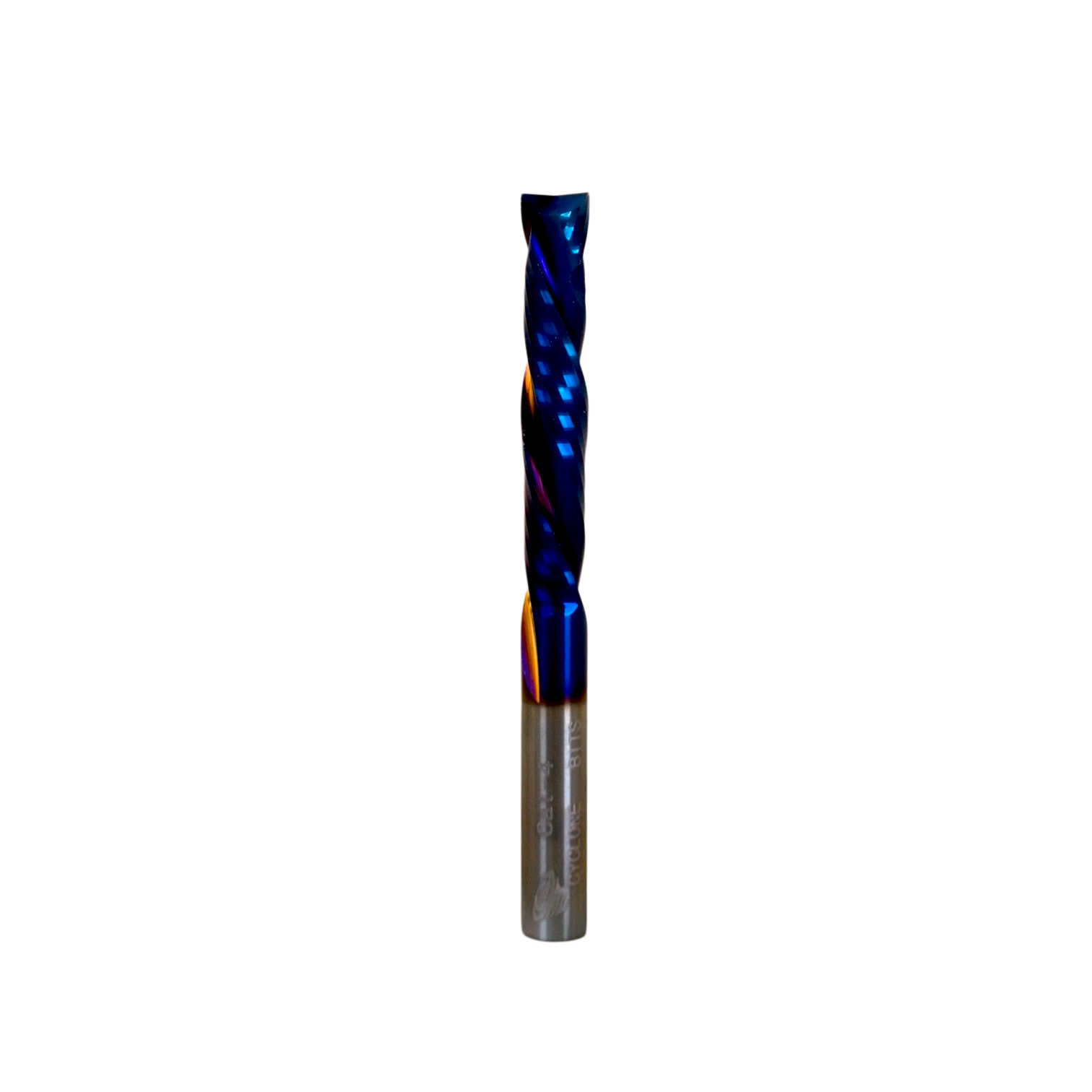

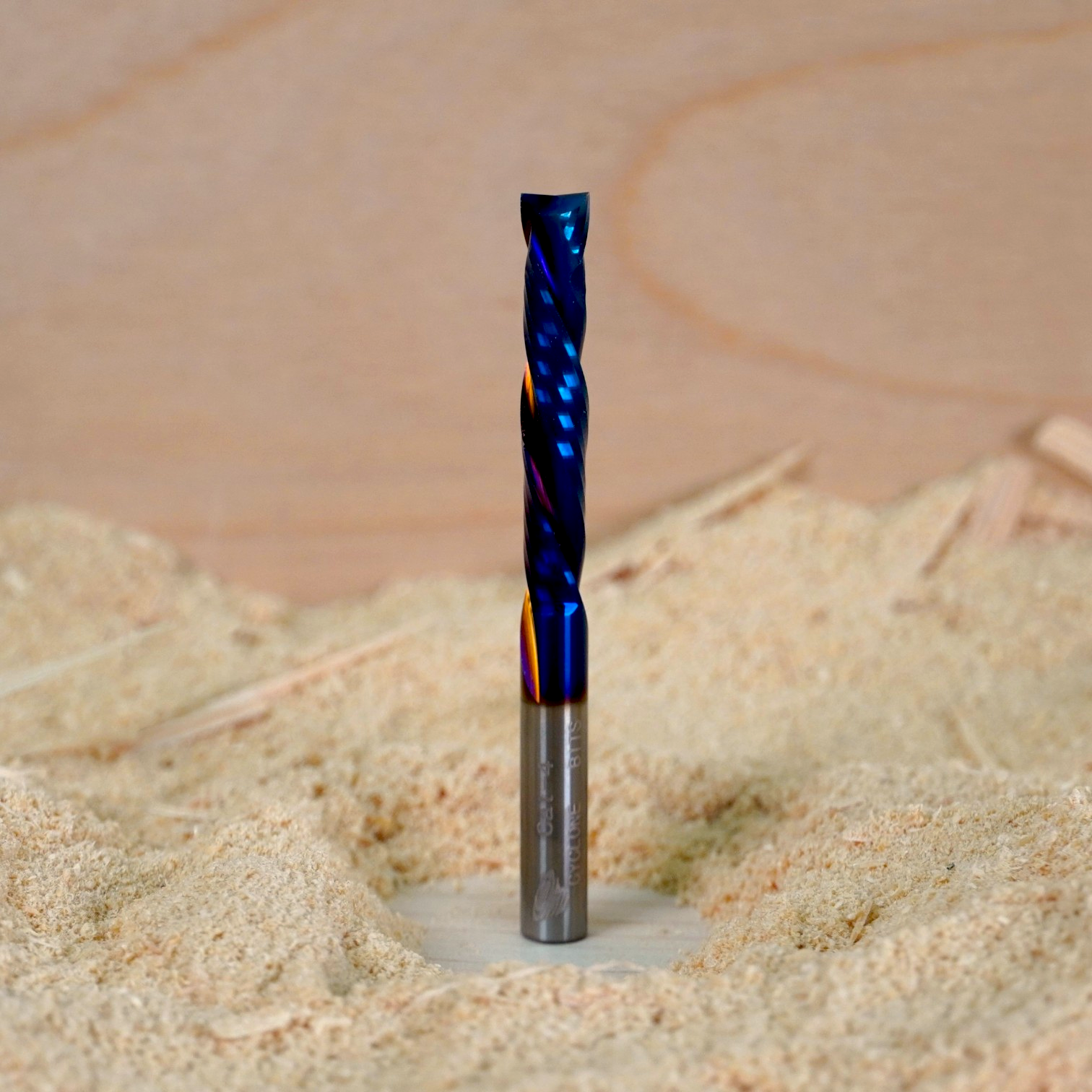

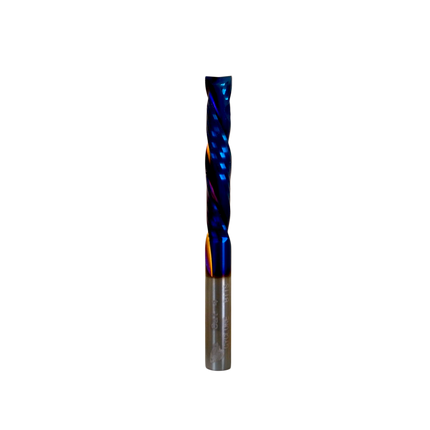

CNC Router Compression End Mill Cat-4 1/4"-Tungsten Carbide

Nano Blue Coated

Overview
CNC Router Compression End Mill Cat-4 1/4"-Tungsten Carbide is built for clean, chip-free edges on both the top and bottom of sheet goods. The compression geometry combines up-cut and down-cut flutes to pull fibers inward and reduce tear-out, making it ideal for plywood, laminates, and veneered materials on spindle-driven CNC machines.

Best For

• Plywood
• MDF
• Laminated sheet goods
• Veneered panels

Why Choose It

• Clean top and bottom edges in one pass
• Great for sheet goods and laminates
• Nano Blue coating reduces heat and friction
• Stable cutting at higher spindle RPMs

Starting Parameters
Conservative starting values for spindle-driven CNC machines.

• Spindle: 16,000–18,000 RPM
• Feed: 120–180 IPM
• Plunge: 40–60 IPM
• Cut Strategy: Run deep enough to fully engage the compression zone

Specifications

• Tool Type: Compression End Mill
• Flutes: 2
• Cutting Diameter: 1/4"
• Cutting Length: 1.5"
• Shank Diameter: 1/4"
• Overall Length: 2.75"
• Material: Tungsten Carbide
• Coating: Nano Blue

Notes

• Best performance comes at full or near-full material thickness
• Shallow passes will not produce clean edges on both faces
• Proper dust collection improves cut quality and tool life

Specifications

• Package: 1
• Part#: Part#
• Coating: Coating
